Bayesian geolift with CausalPy#
This notebook covers how to use CausalPy’s Bayesian synthetic control functionality to assess ‘geolift’. Our hypothetical scenario is:
We are a data scientist within a company that operates over Europe. We have been given a historical dataset of sales volumes, in units of 1000’s. The data is broken down by country and was collected at weekly frequency. We have data for the past 4 years.
At the start of 2022, the marketing department decided to refurbish all the stores in Denmark. Now, at the end of 2022, the company wants you to assess whether this refurbishment programme increased sales. If you tell them that the store refurbishment scheme increased sales volumes then they will roll out the scheme to other countries. Nobody said this, but in the back of your mind you worry that if you tell them that refurbishments increase sales but that doesn’t actually happen in the future, then the companies profits will drop, the value of your shares will decrease, and your job security may be at risk.
Your boss is pretty tuned in. She also has these concerns. She knows that while it might be easy to establish an association between the store refurbishments and changes in sales volumes, we really want to know if the store refurbishments caused an increase in sales.
We know that the best way to make causal claims is to run a randomized control trial (sometimes known as an A/B test). If we have randomly assigned stores across Europe (or picked a country) at random, then perhaps an A/B test would do the job. But we did not pick Denmark at random - so we are worried about confounding variables.
But we heard about synthetic control methods and a thing called GeoLift. After some research, we decide this is exactly what we want to do. But we are particularly interested in how certain we are in the level of any uplift we detect, so we want to use Bayesian methods and get easy to interpret Bayesian credible intervals. You find a library called
CausalPythat supports exactly that use case and are delighted.
Let’s go!
import arviz as az
import pandas as pd
import causalpy as cp
%load_ext autoreload
%autoreload 2
%config InlineBackend.figure_format = 'retina'
pd.set_option("display.precision", 2)
seed = 42
Load the dataset#
CausalPy includes an example (simulated) dataset suitable to explore ideas around geographical lift testing. All we need to do is to load that, get our observation dates set up appropriately in a pandas dataframe, and define the treatment time.
df = (
cp.load_data("geolift1")
.assign(time=lambda x: pd.to_datetime(x["time"]))
.set_index("time")
)
treatment_time = pd.to_datetime("2022-01-01")
df.head()
| Austria | Belgium | Bulgaria | Croatia | Cyprus | Czech_Republic | Estonia | Finland | Greece | Hungary | Denmark | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| time | |||||||||||
| 2019-01-06 | 1.63 | 1.75 | 1.51 | 1.38 | 1.97 | 1.21 | 2.06 | 1.69 | 2.98 | 4.02 | 1.71 |
| 2019-01-13 | 1.48 | 1.65 | 1.37 | 1.46 | 1.86 | 1.53 | 1.97 | 1.82 | 2.98 | 4.19 | 1.77 |
| 2019-01-20 | 1.73 | 1.66 | 1.47 | 1.31 | 2.30 | 1.35 | 1.80 | 1.70 | 2.81 | 4.03 | 1.93 |
| 2019-01-27 | 1.77 | 1.57 | 1.26 | 1.23 | 2.01 | 1.31 | 1.96 | 1.59 | 2.87 | 4.11 | 1.80 |
| 2019-02-03 | 1.70 | 1.73 | 1.29 | 1.30 | 2.07 | 1.28 | 1.90 | 1.86 | 2.85 | 4.23 | 1.64 |
In our dataset, columns represent the different European countries that we operate in. We also have an index which labels each row with the date - the observations are weekly in frequency. The values in the table represent the sales volumes and are in units of 1000’s. So a value of 2.4 represents 2,400 units sold per week.

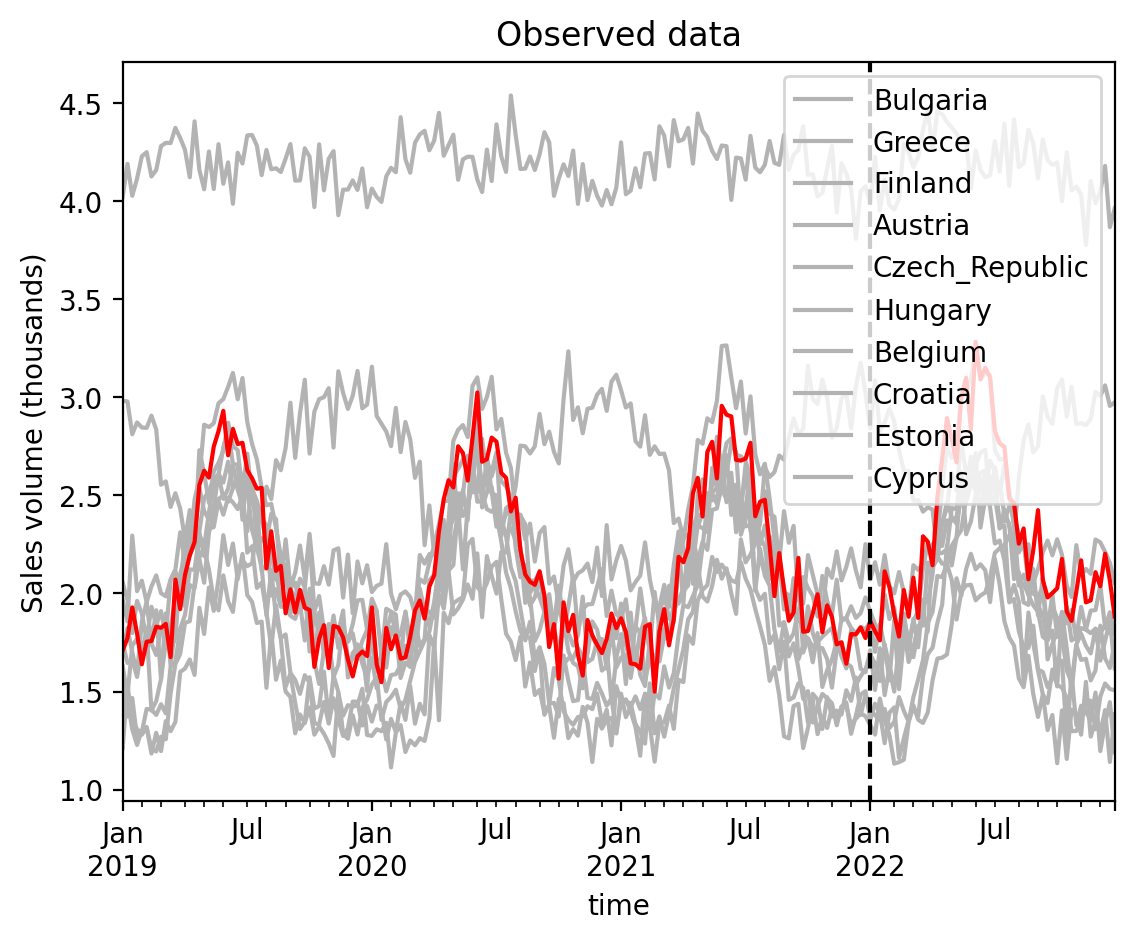

So let’s plot that.
untreated = list(set(df.columns).difference({"Denmark"}))
ax = df[untreated].plot(color=[0.7, 0.7, 0.7])
df["Denmark"].plot(color="r", ax=ax)
ax.axvline(treatment_time, color="k", linestyle="--")
ax.set(title="Observed data", ylabel="Sales volume (thousands)");
This looks pretty nice, but also disappointing. It is not immediately obvious from a visual inspection that there is a clear change in sales data in Denmark after the stores were refurbished (shown by the dashed line). This is made worse by the presence of annual seasonality in the data (which is different in each country), and the inherent stochasticisty in the weekly sales data.
Pre-experiment diagnostics: market correlations#
Before fitting a model, it is worth checking how similar the candidate control markets are to each other and to the treated market. Markets that move together in the pre-treatment period are more likely to produce a reliable synthetic control – the weighted combination of controls will more easily replicate the treated unit’s trajectory.

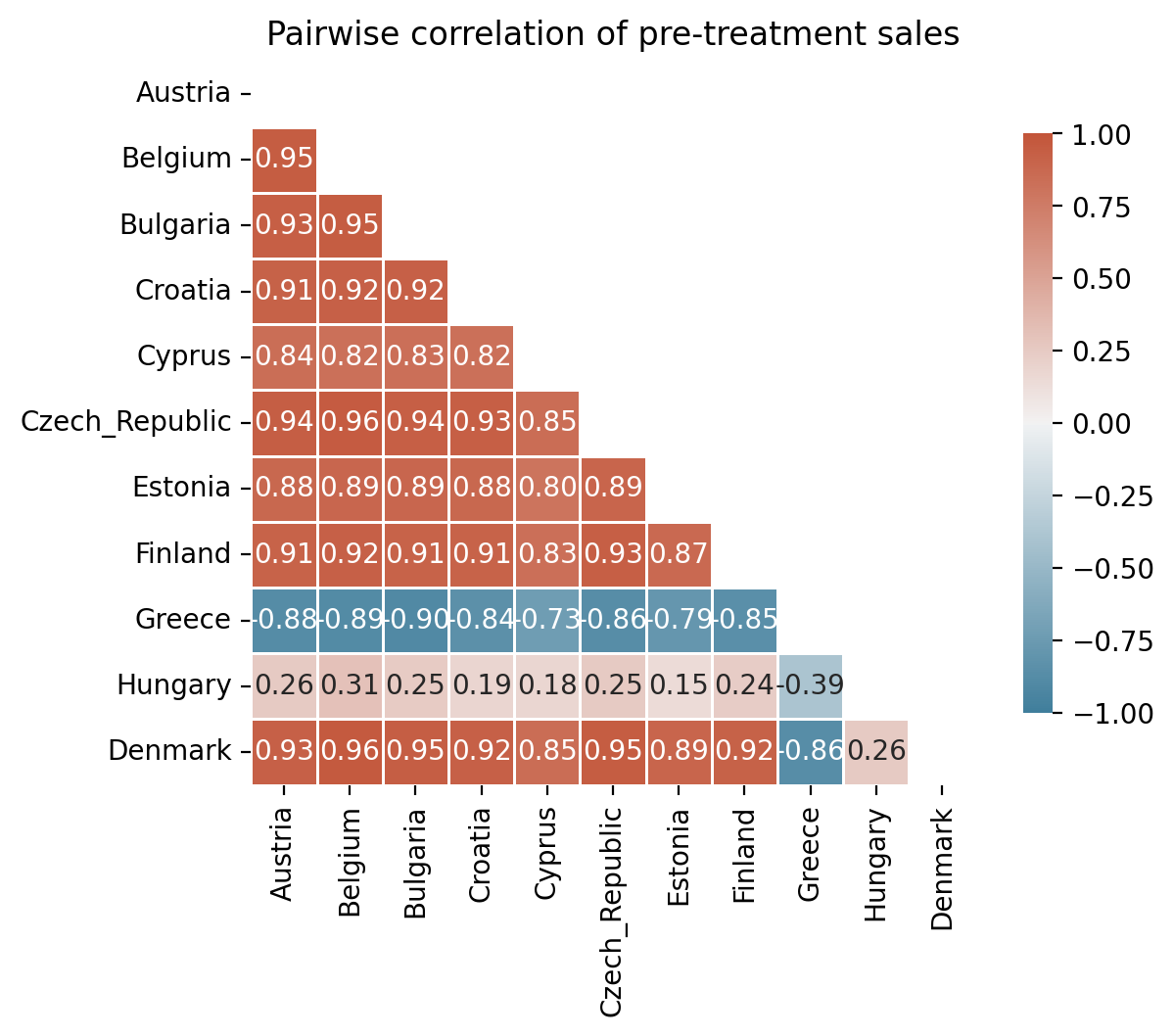

CausalPy provides plot_correlations() to visualise the pairwise Pearson correlations between all locations in the panel data. High positive correlations between the treated market and several controls suggest that the control pool can plausibly reconstruct the treated unit’s counterfactual.
pre_treatment = df.loc[df.index < treatment_time]
corr, ax = cp.plot_correlations(pre_treatment)
ax.set(title="Pairwise correlation of pre-treatment sales");
The heatmap reveals that most countries are strongly positively correlated with Denmark, but two countries – Greece and Hungary – are negatively correlated with the treated unit. This is a sign that those markets are driven by different underlying factors and would be poor donors for the synthetic control.
Donor pool selection#
The synthetic control method works by reconstructing the treated unit as a weighted combination of control units. Including controls that move in the opposite direction to the treated unit can introduce interpolation bias and push the synthetic control outside the convex hull condition of the donor pool [Abadie et al., 2010, Abadie, 2021]. Abadie and L'Hour [2021] further show that dissimilar donors amplify estimation error in disaggregated settings.
Practical guideline
Before fitting a synthetic control model, inspect the pre-treatment correlation heatmap and exclude any control units that are negatively correlated (or only weakly correlated) with the treated unit. This is especially important for Bayesian implementations that use a Dirichlet prior, since all donors receive non-zero weight by construction.
denmark_corr = corr["Denmark"].drop("Denmark")
good_donors = list(denmark_corr[denmark_corr > 0].index)
excluded = list(denmark_corr[denmark_corr <= 0].index)
print(f"Keeping {len(good_donors)} donors: {good_donors}")
print(f"Excluding {len(excluded)} units: {excluded}")
Keeping 9 donors: ['Austria', 'Belgium', 'Bulgaria', 'Croatia', 'Cyprus', 'Czech_Republic', 'Estonia', 'Finland', 'Hungary']
Excluding 1 units: ['Greece']
With the contrarian markets removed, the remaining donor pool consists of countries that co-move with Denmark during the pre-treatment period. We can now proceed to fit the synthetic control model using these curated donors.
Was there a geolift in sales in Denmark?#
In order to calculate what (if any) causal effect there is from the store refurbishment we need to compare the actual sales in Denmark after the intervention and the counterfactual sales in Denmark if the intervention had not taken place. We can see why this is called the counterfactual - we did refurbish the stores in Denmark, so this is a completely hypothetical scenario that runs counter to the facts. But if we could measure (or more realistically estimate) this, that would be our control group.
In this case, we generate a synthetic control, which is the name of the technique we will be using to estimate our counterfactual sales data in Denmark if the refurbishment had not taken place. You can read more about the synthetic control method on the synthetic control wikipedia page, but the basic idea is as follows. For those familiar with traditional (non-Bayesian) modelling methods, the basic synthetic control algorithm can be described like this:
import my_custom_scikit_learn_model as weighted_combination
# fit the model to pre-intervention (training) data
weighted_combination.fit(X_train, y_train)
# estimate the counterfactual given post-intervention (test) data
counterfactual = weighted_combination.predict(X_test)
# estimate the causal impact
causal_impact = y_test - counterfactual
# cumulative causal impact
np.cumsum(causal_impact)
So there is no magic involved - we simply estimate a synthetic Denmark as a weighted sum of the untreated units. We do this based on the ‘training’ data observed before the intervention. We then use that weighted sum model to predict our synthetic Denmark based on ‘test’ data of untreated countries observed after the intervention. We can then simply compare this counterfactual estimate with the observed sales data in Denmark and obtain our estimate of the causal impact. We can then (optionally) calculate the cumulative causal impact to answer the question “How many more sales were caused by the store refurbishment over 2022?”
We can use CausalPy’s API to run this procedure, but using Bayesian inference methods as follows:
Note
The random_seed keyword argument for the PyMC sampler is not necessary. We use it here so that the results are reproducible.
result = cp.SyntheticControl(
df,
treatment_time,
treated_units=["Denmark"],
control_units=good_donors,
model=cp.pymc_models.WeightedSumFitter(
sample_kwargs={"target_accept": 0.95, "random_seed": seed}
),
)
